Edge-side intelligent compression gateways for distributed sites. From a 150-gram single-stream device on a solar-powered pole to a 16-channel aggregation gateway in a branch equipment room — the same compression core, sized to the site.

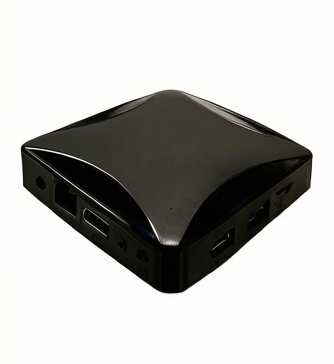

Remote water monitoring stations, field poles and standalone cameras where power is scarce and the link is a metered 4G connection. The P1 compresses a 1080P stream to roughly 0.5 Mbps on 3.6 watts, in a package that weighs 150 grams.

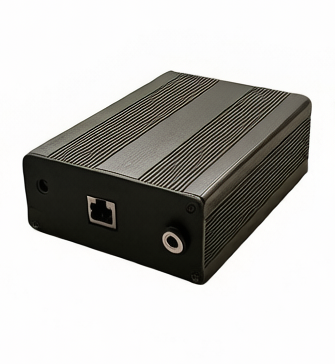

Banking branches, retail stores and ATM sites with two to four cameras and a retention rule that local storage cannot satisfy. The P2/P4 compresses at the edge, uploads to head office, and removes the local recorder from the estate entirely.

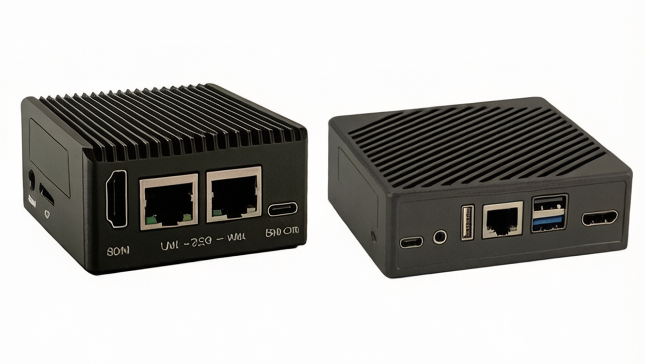

Higher-density branch and head-end sites that still have no machine room. The P8 and P16 compress up to sixteen concurrent streams, aggregate them with built-in GB/T 28181 cascading, and hand off to head office over the existing dedicated line.
Selection basis: one 1080P stream equals one compute unit, one 4 MP stream equals two.
| Parameter | P1 | P2 / P4 | P8 / P16 |
|---|---|---|---|
| Streams processed | 1 (1080P per stream) | 2 / 4 | 8 / 16 |
| Compression ratio | H.264 90% / H.265 80% | H.264 90% / H.265 80% | H.264 90% / H.265 80% |
| Input power / consumption | Wired: DC 5V 2A / 3.6 W5G variant: DC 12V 2A / 4.5 W | DC 12V 2A / 3.6 W | DC 12V 2A / 3.6 W |
| Operating temperature / humidity | -10°C to +65°C / 10–85% | -10°C to +65°C / 10–85% | -10°C to +65°C / 10–85% |
| Video format / frame rate | H.264 / H.265, audio AAC (1–30 fps) | H.264 / H.265, audio AAC (1–30 fps) | H.264 / H.265, audio AAC (1–30 fps) |
| Supported protocols | ONVIF · RTSP · GB/T 28181 | ONVIF / RTSP / GB/T 28181 | ONVIF · RTSP · GB/T 28181 · private |
| Form factor / dimensions | Wired: 85 × 85 × 20 mm5G variant: 122 × 98 × 38 mm | 122 × 98 × 38 mm | P8: 62.5 × 62.5 × 29.5 mmP16: 94.5 × 68 × 30 mm |
| Weight | 0.15 kg / 0.2 kg | 0.32 kg | 0.35 kg |
| Local storage | — | Built-in TF micro-storage | — |
| Network planes | Single | Single | Physically isolated dual planes |
| Typical applications | Remote water monitoring, field poles, single-camera sites | Banking and retail branches, chain stores, ATM sites | Branch aggregation, chain head ends, medium-density sites |
Hundreds of small sites each with two to four cameras and long statutory retention.
Branches, ATM sites and chain stores where the dedicated line is the bottleneck.
Solar-powered poles and unmanned monitoring stations with metered wireless links.
Outbuildings, gates and perimeter positions too far from the main equipment room.
Send us a site list with camera counts. We will recommend the model split and return an indicative bandwidth and storage model.
